Component ID Tips: Caterpillar Truck Operator Cab Structural Differences Per Application.

13/09/2023

DGI’s component guide series outlines how to quickly and accurately identify or upgrade major OEM components. This month, we’re exploring the structural differences between operator cabins featured within similar model trucks that are utilised for different applications.

An operator cab’s design and features might differ depending on the intended application. For a dump truck like the Caterpillar 777F used in mining or construction, the emphasis might be on providing optimal visibility, controls for hauling and dumping materials, and comfort during long shifts. In contrast, a watercart (water truck) operator cab might focus on visibility around the water spraying or distribution equipment, as well as controls related to managing water flow and tank operations.

Did you know that aside from these key aesthetic and functional differences, operator cabins, or ROPS are also structurally different between dump truck and watercart applications?

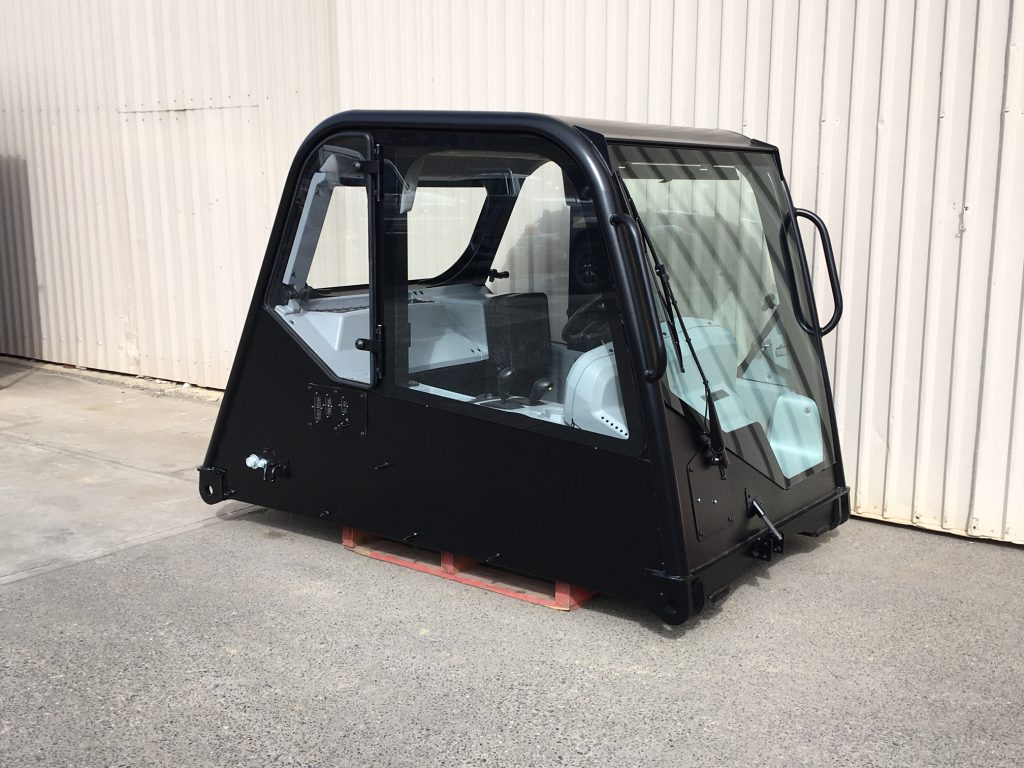

For example, although visually similar in many ways, a 777F cab used on a watercart is approximately 50kg heavier than that found on a 777F dump truck, due to the inclusion of heavier gauge materials to provide additional roll-over protection. Watercart cabins, or ROPS structures, are engineered to be structurally different due to the headboard of the dump truck body being considered part of the ROPS.

In fact, across all of the ‘smaller’ models of Caterpillar trucks being utilised as watercarts, the dump body headboard is considered part of the ROPS. These can include the Caterpillar 773, 775 and 769 models of truck.

‘Larger’ watercarts, such as the Caterpillar 777 and 785 utilise a structure attached to the water tank itself to contribute to the structural integrity of the ROPS system.

It’s important to note that these points are general considerations and that specific details could vary depending on the manufacturer’s design choices, the model of the equipment, and the regulations of the region in which the equipment is being used

Our recently expanded purpose-built operator cabin refurbishment facility, combined with our specialist team provides our customers with a competitive advantage, solving your problems faster and more economically.

View our live inventory or contact our friendly sales team today to discuss a wide range of available products and solutions to suit your operations.
